Introduction to servers

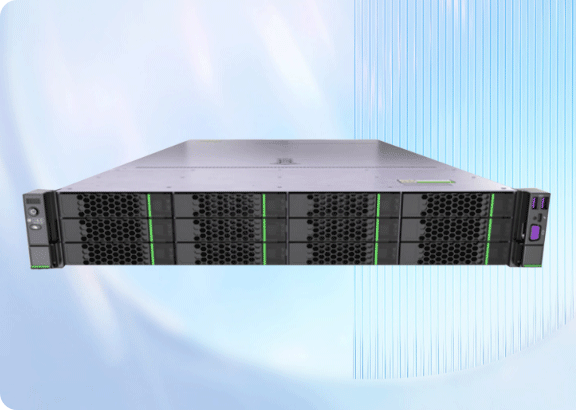

Computational Server (Computational Balanced)
A 2U2 balanced rack server with flexible configuration that can be widely used in business scenarios such as cloud computing, virtualization, databases, big data, etc. It can be configured with 2 CPUs and supports continuous CPU upgrades and evolution, 16/32 DDR4 memory, 14 PCIe expansion slots, and supports high-capacity local storage resources.
Computational Server (Computational Balanced)
A 2U2 balanced rack server with flexible configuration that can be widely used in business scenarios such as cloud computing, virtualization, databases, big data, etc. It can be configured with 2 CPUs and supports continuous CPU upgrades and evolution, 16/32 DDR4 memory, 14 PCIe expansion slots, and supports high-capacity local storage resources.
Server Details
  • Diverse Computing Power
    a. Supports 80 cores of general-purpose computing power, with a maximum support of 32 DIMMs
    b. Supports up to 14 PCIe slots, providing 1G, 10G, 25G, 40G, 100G, 200G network interfaces
  • Balancing Storage and Calculation
    a. Supports up to 45 2.5-inch hard drives
    b. Supports up to 34 full NVMe SSDs
    c. Supports a maximum memory capacity of 12TB
  • Safe and Reliable
    a. The chip level redundancy design using core components such as BIOS/BMC ensures system switching to standby chip startup and supports hot patch upgrades
    b. Support security features such as power on password, administrator password, TPM 2.0, security panel, secure startup, and lid opening detection
Technical Specifications
Form Name
Specification Parameters
Processor
2 CPUs, maximum power consumption per CPU 270W
Memory
32 DDR4 memory slots, up to 3200MT/s, supporting 128GB of memory
Local Storage
• Supports up to 45 2.5-inch hard drives or 34 full NVMe SSDs
• Can be configured with 2 M.2 SSD hard drives
Storage Controller
Optional HBA and smart array card options based on standard PCIe slots
Network
Supports network adapters with standard PCIe slots, can be configured with 1G/10G/25G/100G/200G/400G network cards, supports OCP network cards, and can be configured with 25G/100G/200G network cards
PCIE Extension
14 PCIe 4.0 expansion slots
Interface
Front 2 * USB 3.0, 1 * VGA
Fan
4 hot swappable N+1 redundant fans
Source
Support 1+1 redundant power supply 900W/1200W/1500W/2000W power supply
Administration
BMC supports standard interfaces such as Red Fish, SNMP, and IPMI2.0
Operating System
Mainstream Linux systems, Windows and VMware
Security
Support security features such as power on password, administrator password, TPM 2.0, security panel, secure startup, and lid opening detection
Authentication
CE、CCC、 Environmental labeling and other certifications
Working Temperature
5 º C to 45 º C
Chassis Size
86.1mm x 447mm x 790mm
Introduction to servers

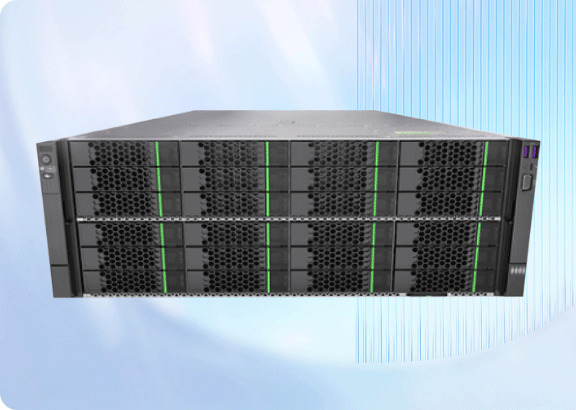

Storage Type Server (High-Density Storage Type)
A 4U2 storage rack server suitable for business needs such as hot and cold data hierarchical deployment, cloud storage, video monitoring, etc. It ensures processing performance with flexible local storage expansion, significantly cutting storage costs. It can be configured with 2 CPUs and supports continuous CPU upgrades and evolution, with 32 DDR4 memory and 44 3.5-inch hard drives+4 NVMe SSDs for local storage resources.
Storage Type Server (High-Density Storage Type)
A 4U2 storage rack server suitable for business needs such as hot and cold data hierarchical deployment, cloud storage, video monitoring, etc. It ensures processing performance with flexible local storage expansion, significantly cutting storage costs. It can be configured with 2 CPUs and supports continuous CPU upgrades and evolution, with 32 DDR4 memory and 44 3.5-inch hard drives+4 NVMe SSDs for local storage resources.
Server Details
  • Large Storage Capacity
    a. Supports up to 44 3.5-inch hard drives, with a single hard drive capacity of up to 22T, plus 4NVMe SSD hard drives
    b. Flexible storage configuration, supporting front 12/16/24 disk configuration
    c. Supports a maximum memory capacity of 12TB
  • Efficient video analysis and storage
    Providing up to 640 channels of FHD video analysis, and can also support 36 3.5-inch hard drives to meet video analysis and high-capacity storage needs
  • Safe and Reliable
    a. The chip level redundancy design using core components such as BIOS/BMC ensures system switching to standby chip startup and supports hot patch upgrades
    b. Support security features such as power on password, administrator password, TPM 2.0, security panel, secure startup, and lid opening detection
Technical Specifications
Form Name
Specification Parameters
Processor
2 CPUs, maximum power consumption per CPU 270W
Memory
32 DDR4 memory slots, up to 3200MT/s, supporting 128GB of memory
Local Storage
• Can be configured with 36-44 3.5-inch SAS/SATA hard drives, and can also be configured with 4 NVMe SSDs
• Can be configured with 2 M.2 SSDs
Storage Controller
Optional HBA and smart array card options based on standard PCIe slots
Network
Supports network adapters with standard PCIe slots, can be configured with 1G/10G/25G/100G/200G/400G network cards, supports OCP network cards, and can be configured with 25G/100G/200G network cards
PCIE Extension
11 PCIe 4.0 expansion slots
Interface
Front 2 * USB 3.0, 1 * VGA
Fan
4 hot swappable N+1 redundant fans
Source
Support 1+1 redundant power supply 900W/1500W/2000W power supply
Administration
BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0
Operating System
Mainstream Linux systems, Windows and VMware
Security
Support security features such as power on password, administrator password, TPM 2.0, security panel, secure startup, and lid opening detection
Authentication
CE、CCC、 Environmental labeling and other certifications
Working Temperature
5 º C to 45 º C
Chassis Size
175mm x 447mm x 790mm
Introduction to servers
Computational Server (Computational Balanced)
A 1U/2U 2-way balanced rack server designed for business applications such as virtualization, big data, databases, cloud scenarios, etc. It can be configured with 2 CPUs , each processor supporting up to 350W.
Computational Server (Computational Balanced)
A 1U/2U 2-way balanced rack server designed for business applications such as virtualization, big data, databases, cloud scenarios, etc. It can be configured with 2 CPUs , each processor supporting up to 350W.
Server Details
  • Excellent Performance
    a. Compared to third-generation processors, it can achieve up to 60% increase in kernel count
    b. Supports eight channel DDR5 memory technology, providing users with up to 1.75 times more memory bandwidth compared to the previous generation product
  • Intelligent Management
    a. The all-new Cloud BMC achieves automatic version push, improves upgrade efficiency by 5 times, achieves refined component management, predicts faults in advance, and reduces downtime by 20%
    b. Provide batch deployment and upgrade tools, increasing business deployment efficiency by three times
  • Safe and Reliable
    a. The chip level redundancy design using core components such as BIOS/BMC ensures system switching to standby chip startup and supports hot patch upgrades
    b. Support security features such as power on password, administrator password, TPM 2.0, TCM, security panel, secure startup, and lid opening detection
Technical Specifications
Form Name
Specification Parameters
Processor
2 CPUs, maximum power consumption per CPU 350W
Memory
32 DDR5 memory slots, up to 4800MT/s, supporting 128GB of memory
Local Storage
Front 1, 12 * 3.5-inch SATA HDD 2, 24 * 2.5-inch SAS/SATA SSD 3, 8/16/24 * NVMe SSD
Rear 1, 4 * NVMe SSD+2 * SATA SSD
Storage Controller
Optional HBA and smart array card options based on standard PCIe slots
Network
Supports network adapters with standard PCIe slots, can be configured with 1G/10G/25G/100G/200G/400G network cards, supports OCP network cards, and can be configured with 25G/100G/200G network cards
PCIE Extension
Front 1, 4/8/12 * Full height, full length, single width slot
Rear 1, 3 * Full height, full length, double width slot+2 * Full height, half length, single width slot 2, 6 * Full height, full length, single width slot+2 * Full height, half length, single width slot
Interface
Front 2 * USB 3.0, 1 * VGA
Fan
4 hot swappable N+1 redundant fans
Source
Support 1+1 redundant power supply 1300W/2000W/2400W power supply
Administration
The all-new Cloud BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0, and supports intelligent management and intelligent fault management
Operating System
Mainstream Linux systems, Windows and VMware
Security
Support security features such as power on password, administrator password, TPM 2.0, TCM, security panel, secure startup, and lid opening detection
Authentication
CE、CCC、 Environmental labeling and other certifications
Working Temperature
5 º C to 45 º C
Chassis Size
86.1mm x 447mm x 790mm
Introduction to servers

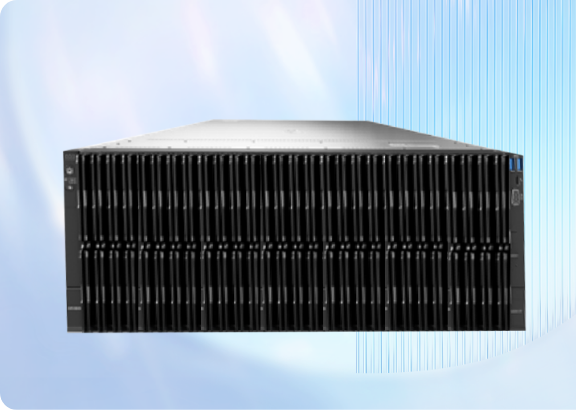

Computational Servers (Memory Enhanced)
A 4U4 rack server designed for business applications such as databases, big data, cloud computing,SAP HANA, etc. It can be configured with 4 CPUs and supports 64 DDR5 memories.
Computational Servers (Memory Enhanced)
A 4U4 rack server designed for business applications such as databases, big data, cloud computing,SAP HANA, etc. It can be configured with 4 CPUs and supports 64 DDR5 memories.
Server Details
  • Strong Performance and Strong Scalability
    a. Supports 4 Sapphire Rapids processors, doubling the system level general-purpose computing power to support up to 16T of memory, with maximum single machine memory bandwidth and the strongest performance in memory computing scenarios
    b. End-to-end I/O balancing without bottlenecks, supporting up to 50+2.5-inch hard drives and up to 22 PCIE slots
  • Efficient and Energy-Saving
    a. Intelligent perception business, dynamic load regulation, high system energy efficiency, and a 5% reduction in power loss compared to the industry
  • Safe and Reliable
    a. Innovative RAS enhancement mechanism significantly improves memory fault tolerance and reduces system downtime by 45%
    b. Redundant design of power supply and cooling systems
    c. Supports security features such as TPM 2.0, TCM, and secure boot
Technical Specifications
Form Name
Specification Parameters
Processor
4 CPUs, maximum power consumption per CPU 350W
Memory
64 DDR5 memory slots, up to 4800MT/s, capable of supporting 256GB of memory
Local Storage
Supports up to 52 2.5-inch hard drives, can be configured with 25 front 2.5-inch SAS/SATA hard drives, and 24 front NVMe SSD hard drives
Storage Controller
Optional HBA and smart array card options based on standard PCIe slots
Network
Supports network adapters with standard PCIe slots, can be configured with 1G/10G/25G/100G/200G/400G network cards, supports OCP network cards, and can be configured with 25G/100G/200G network cards
PCIE Extension
Up to 22 PCIe expansion slots, 1 OCP 3.0 dedicated FLEX IO expansion slot, 21 standard PCIe expansion slots
Interface
Front 2 * USB 3.0, 1 * VGA
Fan
8 hot swappable N+1 redundant fans
Source
Supports 1+1 redundant power supply 1500W/2000W/3000W power supply
Administration
BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0
Operating System
Mainstream Linux systems, Windows and VMware
Security
Support security features such as power on password, administrator password, TPM 2.0, TCM, security panel, secure startup, and lid opening detection
Authentication
CE、CCC、Environmental labeling and other certifications
Working Temperature
5 º C to 45 º C
Chassis Size
175mm x 447mm x 898mm
